Front Loaders

XB Bionic II: Innovation

PROVEN IN USE
The application of design principles taken from nature has proven itself in daily, tough use. The protected arrangement of the moving components within the loading arms increases the service life and significantly reduces the effort for maintenance and cleaning.

X kinematics
The precise mechanical parallel guidance through the patented Hauer X-Kinematics has set a new standard in front loader construction. With the X-kinematics, the diagonals define the mechanical parallelogram. This allows the arrangement within the loading arm. The overall installation space is significantly reduced compared to conventional construction.

The advantages at a glance

• Unique, patented construction with universally applicable, modern design
• Maximum stability thanks to the construction of the loading arm profile and the double-walled cross member
• Optimum protection of the hydraulic components through integration in the loading arm and cross member
• Up to 30% more power when retracting and quick tipping without a speed valve due to the reverse arrangement of the tipping cylinders
• Extensive range of accessories for professional and special applications (central lubrication, work lights, camera system, etc.)
• Greatest possible view of the work area due to the omission of the external parallel guide linkage and the slanted cross member

Extensive standard equipment

• Front protection, hydraulic lines to the original control unit, hydraulic hoses, couplings, mounting bracket and screw set suitable for the tractor type
• Device quick-change device, prepared for load hooks, original HAUER, EURO, SMS or MX hook attachment
• Modular hydraulic valve block system MCV, protected installed in the double-walled cross member profile
• Double-acting lifting cylinder
• Double-acting tipping cylinder, protected by a pressure relief valve
• Replaceable bronze bearing bushes in all bearing points
• Shut-off valve in the lifting line
• Protected hydraulic lines mounted on the underside of the loading arm
• Adjustable level indicator
• Adjustable parking supports
• Tool assistant for easy coupling
• Additional equipment available

POM R: Light Version

UNIVERSAL USE
The fully hydraulic universal front loader POM-R with the conventional, mechanical parallel guidance is the light alternative for tractors from 40 to 110 hp. The box-shaped, very robust loading arm profile and the weight-saving design particularly characterize the all-rounder.

The advantages at a glance

• Robust loading arm profile made of fine-grain steel for high stability
• Well-protected hydraulic lines arranged under the boom profile
• Large bearing points with bronze bushes for a long service life
• Modular hydraulic valve system for easy retrofitting with additional functions
• Reversible speed valve for two tipping speeds

Extensive standard equipment

• Front protection, hydraulic supply up to the original control unit, mounting bracket and screw set
• Hydraulic lines mounted on the underside of the loading arm
• Shut-off valve in the lifting line
• Replaceable bearing bushes in all bearing points
• Double-acting lifting cylinders
• Differential tipping cylinder protected by a tandem safety valve
• Valve block system POM-R
• Reversible speed valve for 2 tipping speeds
• Device quick-change device, Euro 8 – hook mount or original Hauer SWE-B
• Additional equipment available

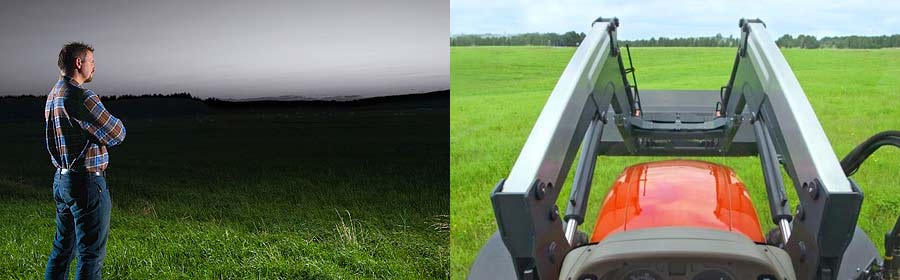

Your strength

To provide strength is one thing. To maximise the power across a full range of functions is another matter entirely.

That’s when you will notice the superior performance in your work and get the most out of your tractor’s potential — every day, year after year. For this reason we constantly develop our products, resulting in the markets most versatile power package, with multiple advantages that pay for themselves — and more — in many different ways. The extreme satisfaction when you look back over your working day. The high quality that becomes more obvious every year. Quite simply, a power that pays for itself and lasts longer — it is an important part of the unique Quicke feeling!

Efficiency through personal design

Annually, we spend thousands of hours developing the design of everything from pins to loader arms. Our obvious focus is that our design solutions should make your work more efficient, safe and more ergonomic.

The reward is all the positive responses we have had from tractor owners the world over. It makes us feel rather safe in the knowledge that no other front loader beats Quicke for wellthought out and closely tested design. This is a position we want to maintain and strengthen, to always be your first choice. Your challenges are therefore also ours. We are not happy until you are happy. This is why, for us, design will always be more than just about shape.

Exclusive details, just for you

Simplify your job, save time, maximise your comfort and safety. These have always been strong driving horses in Quicke’s over 50 year history.

A tireless effort to create the perfect front loader for you and your colleagues the world over. This is in line with (and even a little ahead of) the rapid development of more technically advanced tractors with more powerful engines. How well have we succeeded? One thing is certain: You won’t find a front loader in the whole world with as many smart functions and innovative technical solutions than Quicke. A front loader where new ideas come as standard. Where every tiny detail is closely thought through in order to deliver the greatest possible advantages and use. For you, your tractor and your business. You can find many more specific examples here.

Always close to you

As a Quicke owner, you not only have a world-leading front loader, but you also have a world-leading level of reliability. Your purchase does not end our commitment to you — it’s only the beginning.

Your Quicke has to perform at its best for a long time, and this is made easier if you are close to locations for service, spare parts and knowledgeable support. This is why we have purposefully built up a strong global organsation with a comprehensive service network. This means that you have access to quick and competent service wherever you operate in the world. You can also be sure that our service and support is developed from the same lofty ambitions as our products — always aiming for 100 per cent happy customers!
